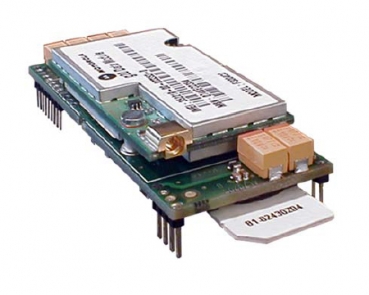

Motorola G.Lite module inside. Quadband 850/900/1800/1900MHz technology. GPRS class 10 and class B multiplexing. Embedded TCP/IP stack. Internal and external SIM card reader. 3.3V and 5V versions available. RoHS compliant product. FCC, PTCRB, GCF and FTA approvals.
Benefits:
- Enables any device to send and receive data via quad-band 850,900,1800,1900 MHz GSM network.
- Based on Motorola G.Lite, one of the most compact modules available and ideally suited for a wide range of M2M applications.
- Pin compatible and exchangeable with Analog, ISDN and LAN socket modems from xmodus.
- FTA, FCC, IC, PTCRB, GCF and EMC regulatory approvals. Full approved in Europe, US and other countries.
Functions:
- AT-Command Set Interface Protocol ETSI GSM 07.05, 07.07 and 07.10.
- Quad band 850/900/1800/1900Mhz GSM Engine.
• Class 4 (2W @ 900 MHz)
• Class 1 (1W @ 1800MHz)
• RX sensitivity –106dBm
• GPRS multi slot classes up to Class 10
• GPRS Class B multiplexing.
• GPRS max. BR 85.6 Kbps (CS4)
Connectivity:
- CSD max. BR 14.4 Kbps
- Sleep mode < 2.5mA @ DRX9
- Transparent, V.32bis and V.110 transmission protocols.
- SMS services features MO/MT text and PDU modes
Specifications:
- Compact Size: 64.5 X 26.5 X 10 mm.
- 3.3V or 5VDC Supply.
- Typical Power use average: 270mA
- Typical Power use @ PCL 8: 1.5A peak.
- Serial RS-232 interface with TTL levels
- Weight: 22 gram.
- Internal SIM card reader.
- External SIM card reader interface.
- Integrated MMCX Antenna Interface.
- Operating temp.: -20° to +60°, extended temperature range demand.
- 2 Year warranty.
