The XUA-1 allows customers that do not have ExpressCard slots to use the Novatel Wireless’ ExpressCards through the USB 2.0 ports on either their laptop or desktop PCs. The Y-cable design of the adapter delivers a boost for improved RF performance and delivers improved performance in fringe reception areas.
This USB adapter makes Novatel's ExpressCards versatile in that they can be used both in laptops and desktop computers. Carriers
benefit by enabling the end-user greater use of the mobile broadband cards thus increased data ARPU.
Extended Use
The ExpressCard is a smaller and faster version of a PCMCIA card. The XUA-1 offers the perfect solution for customers who do not have an ExpressCard slot on their computer but want to take advantage of high speed mobile broadband. The only requirement is an available USB 2.0 port.
No Extra Drivers or Software
Using the XUA-1 is transparent to the computer. Once the XUA-1 with ExpressCard is connected to the USB port, the card will behave as if the card is in an ExpressCard slot. All conversions between the ExpressCard and USB are done transparently by the intelligent hardware in the XUA-1. It uses the same software and drivers that come with the Novatel Wireless ExpressCard product.

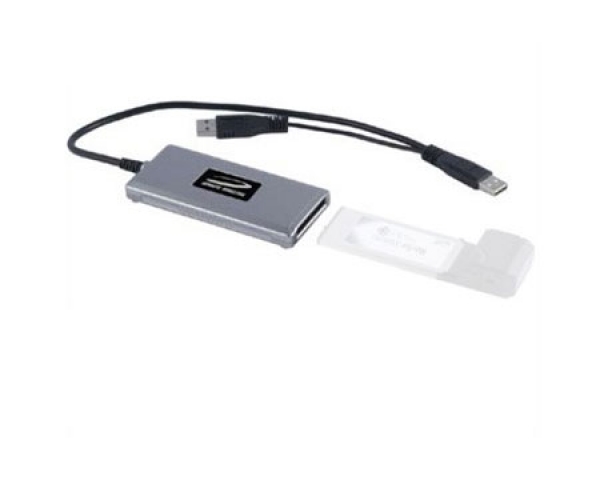

One Piece with Built-In Y Cable Connector
Two USB connectors on the Y-cable deliver a power boost for improved RF performance. The second USB connection is useful in fringe reception areas. The use of the second connector is optional. In most cases, the XUA-1 will work well with only one USB connector.
Advanced Technologies
• ExpressCard to USB conversion
Dimensions and Weight
• 108 x 49 x 14 mm (4.3 x 1.9 x 0.5 in.)
• 70 g (2.5 oz.)
Form Factor
• Thin, rectangular box shape which forms a “sleeve” over ExpressCards and attaches to a USB prot using the built-in cable
Host Interface
• USB 2.0
Power consumption
• Voltage 5V (nominal)
• Converts USB 5V to ExpressCard 3.3V
Environmental
• Operating temperature: 0ºC to 50ºC (32ºF to 122ºF)
• Storage temperature: -20ºC to 65ºC (-4ºF to 149ºF)
• EMI Shielding
Applications
• Internet, Intranet
• e-mail & SMS
• Connection logging
• VPN
Software
• Works with all software that is with the original ExpressCard including MobiLink™
Standards/Approvals/Certifications
• FCC
• CE Marking
• Industry Canada
• ExpressCard Compliant
• USB Compliant
• RoHS Directive 2002/95/EC Compliant
• WEEE Directive 2002/96/EC Compliant
Operating Systems Supported*
• Windows® 2000, XP & Vista
• Mac OS X 10.4 Connection Utility
• Linux 2.6.16
Minimum system equirements
• USB 2.0 slot
Standard Package Contents
• Quick Start Guide
• Merlin XUA-1 with attached Y-cable
for use in one or two USB slots**
Branding/Customization
• Hardware (Logo)
Additional:
Novatel Merlin XU870 Express Card Firmware 9.5.03 - Firmware Upgrade Utility for Windows
(Only by old firmware with USB connection problem)
